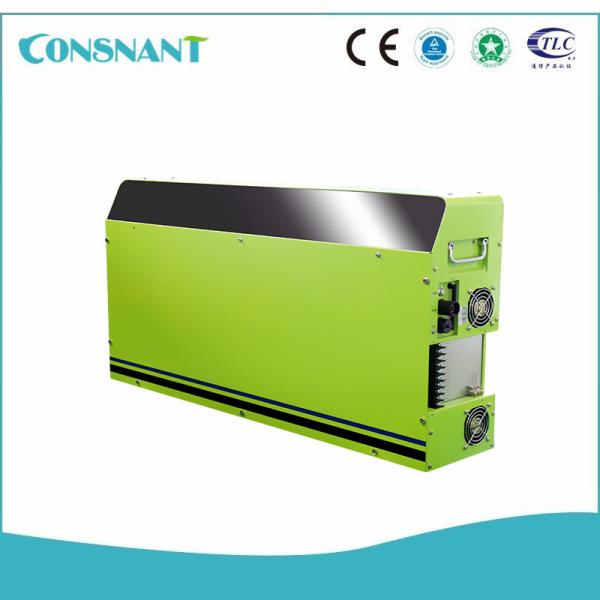

LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design

Product Categories

Shenzhen Consnant Technology Co., Ltd.

Contact Now

Name: LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design
Brand: CONSNANT
Price: 1 USD

Brand Name : CONSNANT

Model Number : HESS

Certification : CE, ISO9001, ISO14001

Place of Origin : Shenzhen,China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 set per month

Delivery Time : 20 days after receving 30% deposid

Packaging Details : Export Standard Package

Max.PVvoltage : 550VDC

Rated power : 3kva

Rated frequency : 50/60Hz

MPPT voltage range : 150VDC-500VDC

Contact Now

Single-phase Energy Storage System (ESS)

Feature

All in one design, integrated LFP Battery;
Hybrid work mode
Easy installation and maintenance, can meet the demand of different clients DIY,
APP for ISO/Android.
On/Off-Grid Functions;
Back-up/Bypass Functions;
Island Function, Battery Capacity Expandable.
Multi protection and warning system, safe and reliable;
Comply with TUV,SAA,CE;
Extensively tested Lithium Batteries.

Specification

Model No.		Unit	Unit R
PV Data (For DC Coupled)
Max. PV Input Power		3KW	/
Max. PV Vpltage		550VDC	/
MPPT Voltage Range		150VDC-500VDC	/
No. of MPPT Trackers/Max.Input Current		1/1*20A	/
On Grid Inverter Side Data (For AC Coupled)
Rated Voltage		/	220V-240Vac
Rated Frequency		/	50/60Hz
Rated Input Current		/	14.3A
Rated Input Power		/	3.3KW
AC Data
Rated Power		3kva
Continuous Ouput Power	Back-up(MAX)	3kva(3.3kva)
	Bypass(MAX)	3kva(9kva)
Overload Capacity (Off-Grid Mode)		3.3KW(normal running),4.5KW(5s),6KW(100ms)
Rated AC Voltage(Input/Ouput)		220V-240Vac/220V-240Vac
Rated Frequency		50/60Hz
Grid Input	Max Current	42.9A
	Max Power	9KVA
Grid Output	Max Current	22A
	Max Power	4.6KW
THD	Inverter Voltage	2%
	On-Grid Current	3%%
AC Input Voltage Range		180-270Vac
Max.Efficiency		94.30%
Output Wave		Pure Sine Wave
Battery Data
Battery Voltage	Rated	48Vdc
	Range	44.5-54Vdc
	Charging Voltage	44.5-54Vdc
Battery Type		LiFePO4(standard)/Others (optional)
Battery Capacity		100AH
Max.Discharging Power		3200W
Max.Charging Current(capacity related)		5-50A(can be configured)
Charging Method		3 Steps charging

LiFePO4 Single Phase Hybrid Battery Electric Storage System All In One Design
