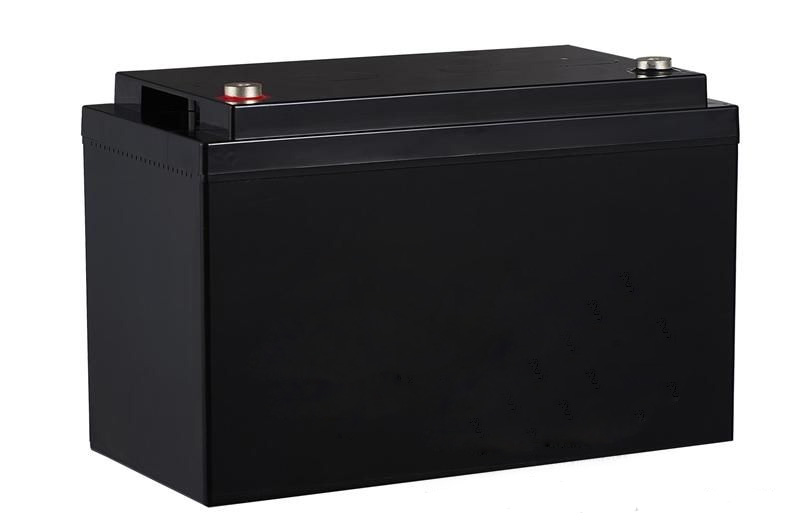

Lithium / Energy storage battery series
Product features:
*Standard lead-acid battery size andspacification.Batteries of the same model and specification can be associated with using.
*It designed with IP65 level of protection, waterproof and dustproof without damaging battery.
*Super long cycle serving life, cycle life attains more than 1500 times, and the discharge capacity is still higher than 80%.
*Under the abuse conditions, using safety, battery interior or external injuries that battery will not burns or explode, has great protection.
*Can quickly electric charge or discharge under large current
*Great performance when high temperature, wide working temperature range (-20~+60V)
*Small size and light weight.
*No memory effect, no matter what condition the battery is in, you can use it with your charge;no need to discharge it firstly.
*Green energy environmental protection,without heavy metal or rare metals,no poisin,no pollute,accord with the Europe ROHS.
*Good replace ability with the same capacity of lead-acid battery pack.
*The size of battery pack is customized against the user`s specification.
Application:
Community
Medical&Health
Banks&Financial
Government&Education
Industry
Technical Specifications:
| Battery Model | Nominal Voltage | Capacity | Electrical Performance Parameter | external dimension | Output Terminal | | Internal Resistance | Maximum charge current | sustain discharge current | Overcurrent Protection | Length | width | height | | JYF12-4.5 | 12.8V | 4.5Ah | ≤300mΩ | 4.5A | 8A | 15±3A | 90 | 70 | 101 | T1 | | JYF12-7.5 | 12.8V | 7.5Ah | ≤200mΩ | 7.5A | 15A | 40±10A | 151 | 65 | 99 | T1 | | JYF1212 | 12.8V | 12Ah | ≤200mΩ | 12A | 20A | 80±20A | 151 | 98 | 95 | T2 | | JYF12-18 | 12.8V | 18Ah | ≤180mΩ | 18A | 30A | 100±20A | 181 | 77 | 167 | M5 | | JYF12-20 | 12.8V | 20Ah | ≤180mΩ | 20A | 30A | 100±20A | 181 | 77 | 167 | M5 | | JYF12-24 | 12.8V | 24Ah | ≤180mΩ | 14A | 30A | 120±20A | 181 | 77 | 167 | M5 | | JYF12-30 | 12.8V | 30Ah | ≤150mΩ | 30A | 40A | 120±20A | 195 | 130 | 164 | M6 | | JYF12-40 | 12.8V | 40Ah | ≤120mΩ | 40A | 50A | 160±20A | 197 | 165 | 170 | M6 | | JYF12-50 | 12.8V | 50Ah | ≤100mΩ | 50A | 50A | 160±20A | 197 | 165 | 170 | M6 | | JYF12-60 | 12.8V | 60Ah | ≤100mΩ | 60A | 60A | 200±20A | 228 | 138 | 228 | M6 | | JYF12-70 | 12.8V | 70Ah | ≤100mΩ | 70A | 70A | 200±20A | 260 | 168 | 208 | M6 | | JYF12-80 | 12.8V | 80Ah | ≤100mΩ | 80A | 80A | 200±20A | 330 | 173 | 212 | M8 | | JYF12-90 | 12.8V | 90Ah | ≤80mΩ | 90A | 90A | 200±20A | 330 | 173 | 212 | M8 | | JYF12-100 | 12.8V | 100Ah | ≤60mΩ | 100A | 100A | 240±20A | 330 | 173 | 212 | M8 | | JYF12-200 | 12.8V | 200Ah | ≤50mΩ | 100A | 100A | 100±20A | | | | | | JYF24-50 | 25.6V | 50Ah | ≤180mΩ | 50A | 60A | 160±20A | 330 | 173 | 212 | M8 | | JYF24-100 | 25.6V | 100Ah | ≤100mΩ | 60A | 60A | 160±20A | | | | | |
